Circumplex Charts

Circumplex Charts like these are easy to create in Brilliant Assessments.

Based on Subsections or Segmentations	With Iterations or other splits.
a.	b.
c.

Circumplex Charts Instructions for Reports

This chart is generated by:

• Getting a background (or foreground) made by a Graphic Designer (an example is attached)
• Create a Polar Chart. For the examples a and b above, the following options were taken in the Merge Manager
  • Height = 650.
  • Title Rules = None
  • Display Labels = Labels
  •  Font Size = 16
  • Y Axis Maximum = 100
  • Y Axis Increment = 25
• Position the image behind or in front of the merge string using MS Word's Picture Tools "Wrap Text" Function.  Usually, a bit of trial and error is required to get the position perfect.

Circumplex Charts Instructions for a results page:

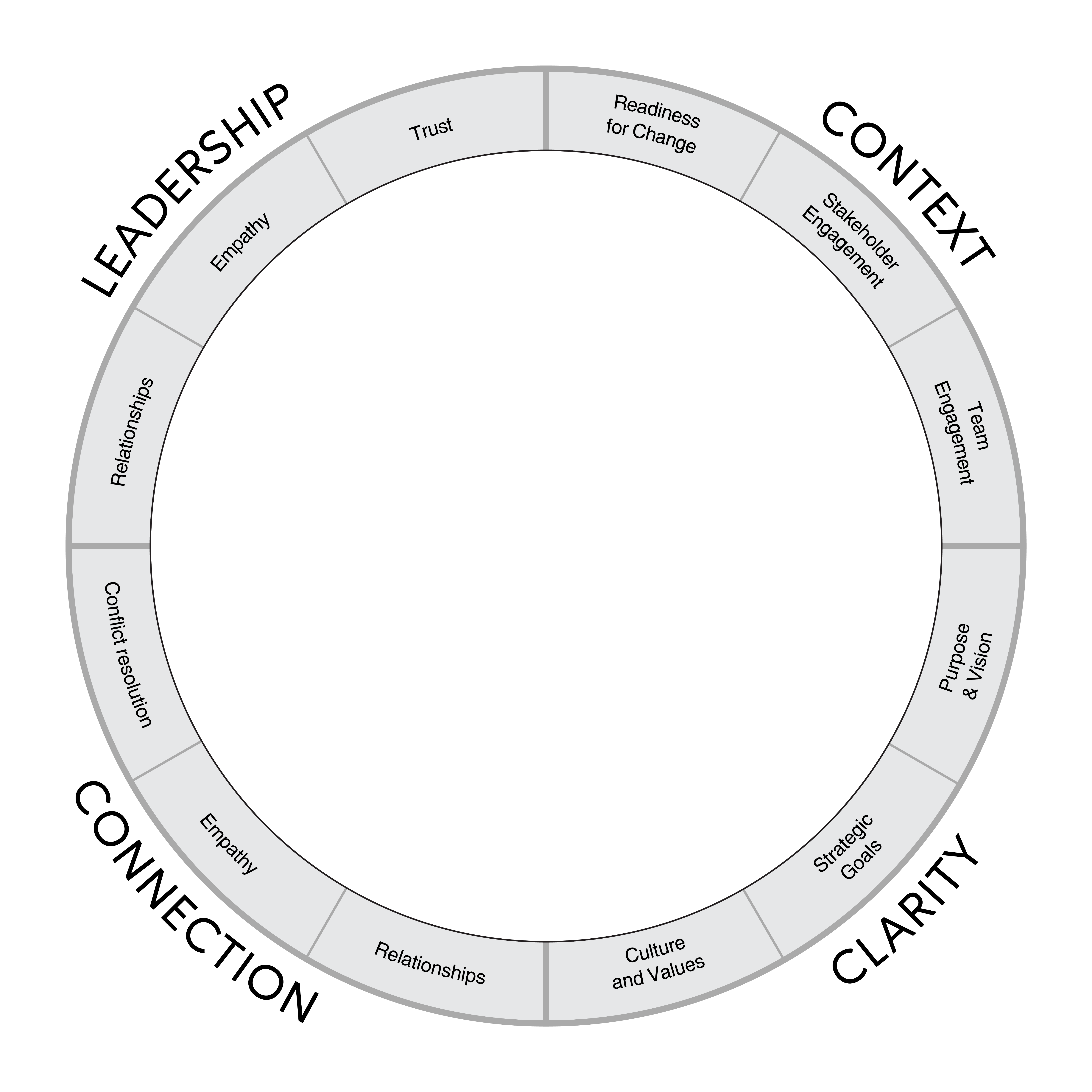

• Get a background image made by a graphic designer, to make it easy you can use the same dimensions as our template attached at the bottom of the article.
• Create or edit a Results page.

These are the exact steps we used to create circumplex chart c. at the top of the article.

1. Head to Graphics> save your background image as ‘Assessment body’ graphic type.
2. Create a Container and drag and drop a ½ size tile into it.
3. Create a polar chart on either sections, subsections, segmentations or questions.
4. We’ve used subsections and set the color of every subsection in the assessment builder.
   Note: you can set the colour of each segment of the polar chart for segmentations, sections and subsections, however, if you want each question to be a different color you will need to create a segmentation for each question.
5. To achieve this circumplex we chose these parameters:

{Polar[SegG=8 SegmentationNo=ALL Label=Y FontSize=6 YAxisMax=100 YAxisInc=101 Legend=N Title=N Label=Y BackgroundGraphic=63871 BackgroundGraphicYRatio=1.20 BackgroundGraphicXRatio=1.20 BackgroundGraphicIsCircle=true Gridlines=X]}

To select the parameters, choose:



Then you need to add some parameters directly to the merge string. Copy and paste:

BackgroundGraphicYRatio=1.20 BackgroundGraphicXRatio=1.20 BackgroundGraphicIsCircle=true

• Ensure there’s a space between the last parameter you created in the merge string and the ones you pasted.
• Ensure there is no space between the last parameter and the ]}.
